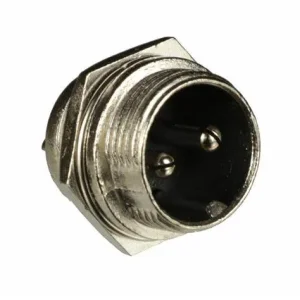

GX16 Standard Type 2 Pin Male Socket Solder
Código: AUGX16-B-2-P
R$ 13,09
Consulte disponibilidade
Informações do Produto
| Part Number / Código | AUGX16-B-2-P |
|---|---|
| Categoria | Conectores circulares |
Descrição
GX16 Standard Type 2 Pin Male Socket Solder
Especificações Técnicas
| color | Silver |
|---|---|
| gender | Male |
| series | AUGX16 |
| temp_max | +85°C °C |
| temp_min | -25 °C |
| ip_rating | IP55 |
| packaging | Bulk |
| orientation | Straight |
| shell_finish | Zinc Plating |
| peso_unitario | 25g |
| connector_type | Receptacle |
| contact_finish | Silver |
| current_rating | 4A, 5A, 7A A |
| fastening_type | Threaded |
| mounting_style | SMD |
| shell_material | Zinc Alloy |
| voltage_rating | 125V, 220V V |
| contact_material | Brass |
| mounting_feature | Back Fastened |
| number_of_contacts | 2 |
| contact_termination | Solder |
| number_of_positions | 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin, 8 Pin, 9 Pin, 10 Pin |
| wire_gauge_or_range | Φ7.5mm-≤Φ8.5mm |
| insulating_materials | Bakelite |
