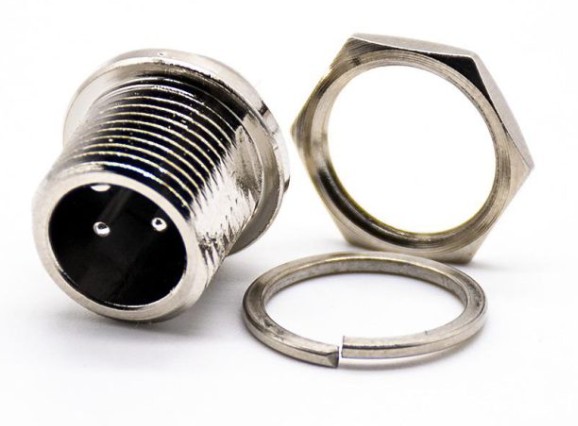

AUGX12 Standard Type 2 Pin Male Socket Threaded Cable Mount Solder Silver
Código: AUGX12-B-2-P
R$ 21,34
Consulte disponibilidade
Informações do Produto
| Part Number / Código | AUGX12-B-2-P |
|---|---|
| Categoria | Conectores circulares |
Descrição
AUGX12 Standard Type 2 Pin Male Socket Threaded Cable Mount Solder Silver
Especificações Técnicas
| color | Silver |
|---|---|
| gender | Female |
| series | AUGX12 |
| produto | GX12 Standard Type 2 Pin Female Straight Plug Threaded Cable Mount Solder |
| temp_max | +85°C °C |
| temp_min | -25 °C |
| ip_rating | IP55 |
| packaging | Bulk |
| orientation | Straight |
| shell_finish | Zinc Plating |
| mounting_type | Cable Type |
| peso_unitario | 25g |
| connector_type | Plug |
| contact_finish | Silver |
| current_rating | 5 A |
| fastening_type | Threaded |
| mounting_style | Cable Mount / Free Hanging |
| shell_material | Zinc Alloy |
| voltage_rating | 125 V |
| contact_material | Brass |
| number_of_contacts | 2 |
| contact_termination | Solder |
| number_of_positions | 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin |
| wire_gauge_or_range | ≤Φ5.0mm |
| categoria_de_produto | Conectores circulares |
| insulating_materials | Bakelite |
