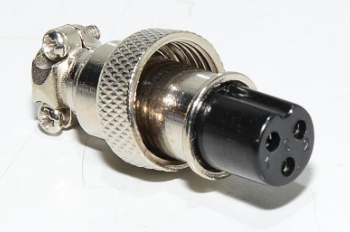

AUGX12 Standard Type 3 Pin Female Socket Solder
Código: AUGX12-A-3-S
R$ 16,80
Consulte disponibilidade
Informações do Produto
| Part Number / Código | AUGX12-A-3-S |
|---|---|
| Categoria | Conectores circulares |
| Prazo de entrega | 25 dias úteis |
Descrição
AUGX12 Standard Type 3 Pin Female Socket Solder
Especificações Técnicas
| gender | Female |
|---|---|
| series | AUGX12 |
| produto | AUGX12 Standard Type 3 Pin Female Socket Solder |
| temp_max | +85 °C °C |
| temp_min | -20 °C |
| ip_rating | IP40 (up to IP55 with suitable cable gland) |
| application | Cable |
| peso_unitario | 13 g |
| connector_type | Circular Metal |
| contact_finish | Silver |
| current_rating | 3 A |
| mounting_style | Cable (Wire Solder) |
| shell_material | Nickel-plated Zinc Alloy |
| voltage_rating | 125 V AC/DC V |
| mechanical_life | ≥ 500 cycles cycles |
| contact_material | Copper |
| approximate_weight | 13 g |
| contact_resistance | ≤ 10 mΩ mΩ |
| number_of_contacts | 3 |
| contact_termination | Solder Cup |
| number_of_positions | 3 |
| categoria_de_produto | Conectores circulares |
| insulating_materials | Bakelite / Phenolic Plastic |
| insulation_resistance | ≥ 1000 MΩ @ 500 VDC MΩ |
| cable_diameter_supported | up to ~5 mm mm |
| dielectric_withstanding_voltage | 1000 VAC / 1 min VAC |
