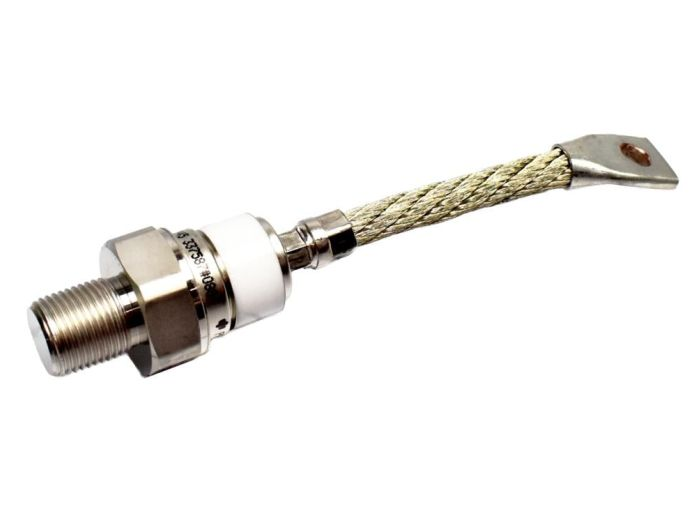

Powerex Diodes, Diode, DO-9, 1000V, 300A, FWD, STD, RoHS
Código: R6001030XXYA
R$ 3.000,35
Consulte disponibilidade
Informações do Produto
| Part Number / Código | R6001030XXYA |
|---|---|
| Categoria | Retificadores padrão |
| Prazo de entrega | 25 dias úteis |
Descrição
Powerex Diodes, Diode, DO-9, 1000V, 300A, FWD, STD, RoHS
Especificações Técnicas
| type | Clamp On |
|---|---|
| vrrm | 4.500 V |
| speed | Standard Recovery >500ns, >200mA (Io) |
| qr_max | 9.5 |
| rt_max | 0.447 |
| housing | Disc dia 120mm height 26mm / Ceramic |
| irm_max | 4200 |
| tvj_max | 140 °C |
| vt0_max | 1.38 |
| ifavm_tc | 2900/55 |
| ifsm_max | 48.000 A |
| temp_max | + 180 C °C |
| temp_min | - 40 C °C |
| vr_d_max | 2.8 |
| vrrm_max | 4.500 V |
| ifsm_10ms | 48000 |
| packaging | Tray |
| rthjc_max | 5.6 |
| vf_if_max | 2.5/2.5 |
| technology | Standard |
| integral_dt | 11500 |
| part_status | Active |
| package_case | DO-200AC, K-PUK |
| configuration | IGCT/IGBT - Freewheeling Diodes |
| surge_current | 103 kA A |
| mounting_style | Clamp On |
| reverse_current | 100 mA |
| voltage_forward | 890 mV @ 8000 A mV |
| base_product_number | 65DN06 |
| voltage_reverse_max | 600 V |
| clamping_force_range | 50 to 100 |
| current_avg_rectified | 15.130 A |
| current_reverse_leakage | 100 mA @ 600 V mA |
| supplier_device_package | BG-D-ELEM-1 |
| operating_temperature_junction | 180°C (Max) °C |
